6" GATE VALVE FLANGED

High quaility Italian made brass valve supplied with 'O' rings and spindle 'U' piece

  • Working pressure: 2.5 bar
  • Material: Brass

  • ItemNoDescriptionUOMPDF
    6000072GATE VALVE 6" c/w FLANGESEACH

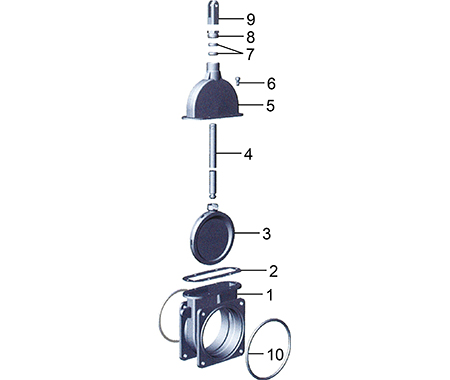

    6000072 Breakdown

    Replacement Parts

    Please Note: It is recommended that should the plate and spindle be disassembled for any reason, that a new stainless steel clamp part no. 00410002A be used for reassembly of the parts.

    No Description Part Number
    1 Bottom Housing -
    2 Gasket 6070500
    3 Plate (Thickness 8.6 / 25.8mm) 6020572
    4 Spindle 6010500
    4a Spindle Clip 00410002A
    5 Top Housing 6090572
    6 Bolt (x6) M816RVS912
    7 Graphite Ring (x2) 6060500
    8 Nut 6040500
    9 'U' Piece 6030500
    10 'O' Ring 6080500
