5" GATE VALVE FLANGED

High quaility Italian made brass valve supplied with 'O' rings and spindle 'U' piece

  • Working pressure: 3 bar
  • Material: Brass

    • ItemNoDescriptionUOMPDF
    5000072GATE VALVE 5" c/w FLANGESEACH

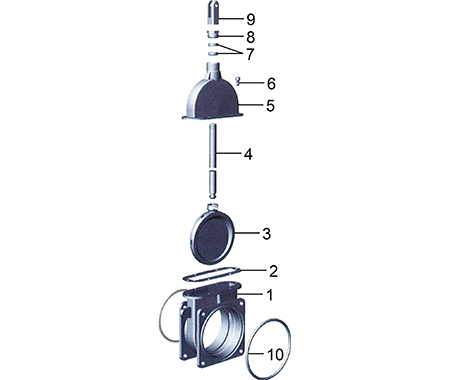

    5000072 Breakdown

    Replacement Parts

    No Description Part Number
    1 Bottom Housing -
    2 Gasket -
    3 Plate (Thickness 8.4 / 22.7mm) 5020572
    4 Spindle 5010500
    5 Top Housing 5090572
    6 Bolt (x6) M816RVS912
    7 Graphite Ring (x2) 6060500
    8 Nut 6040500
    9 'U' Piece 6030500
    10 'O' Ring 6080500
