6" GATE VALVE THREADED

High quaility Italian made brass valve supplied with spindle 'U' piece

  • Working pressure: 2.5 bar
  • Material: Brass

  • ItemNoDescriptionUOMPDF
    6000007GATE VALVE 6" THREADEDEACH

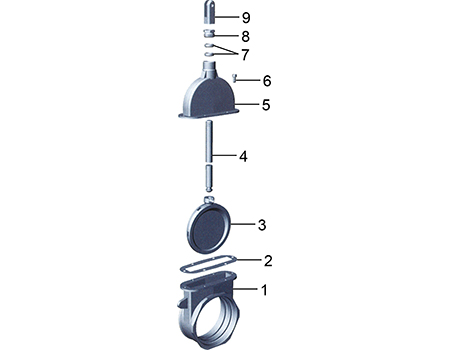

    6000007 Breakdown

    Replacement Parts

    Please Note: It is recommended that should the plate and spindle be disassembled for any reason, that a new stainless steel clamp part no. 00410002A be used for reassembly of the parts.

    No Description Part Number
    1 Bottom Housing -
    2 Gasket 6070500
    3 Plate (Thickness 8.6 / 25.8mm) 6020572
    4 Spindle 6010500
    4a Spindle Clip 00410002A
    5 Top Housing 6090572
    6 Bolt M816RVS912
    7 Graphite Ring 6060500
    8 Nut 6040500
    9 'U' Piece 6030500
