8" GATE VALVE FLANGED

High quaility Italian made brass valve supplied with 'O' rings and spindle 'U' piece

  • Material: Brass

    • ItemNoDescriptionUOMPDF
    8000072GATE VALVE 8" c/w FLANGESEACH

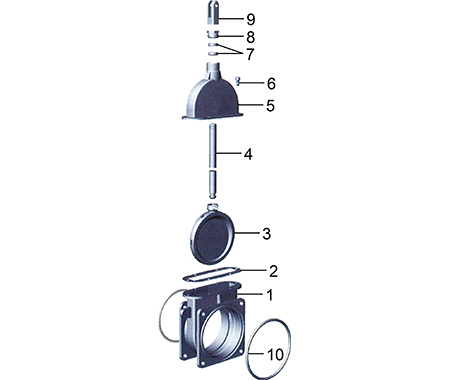

    8000072 Breakdown

    Replacement Parts

    No Description Part Number
    1 Bottom Housing -
    2 Gasket -
    3 Plate (Thickness 19.0 / 41.5mm) 8020572
    4 Spindle 8010500
    5 Top Housing 8090572
    6 Bolt (x6) M816RVS912
    7 Graphite Ring (x2) 8060500
    8 Nut 8045700
    9 'U' Piece 6030500
    10 'O' Ring -
