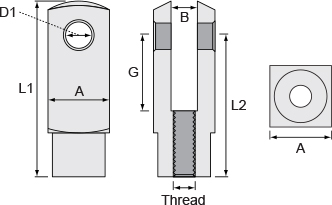

ANF168 Drawing

THREADED CLEVIS

  • Thread: M8
  • L1: 42mm
  • L2: 32mm
  • D1: 8mm
  • G: 16mm
  • B: 8mm
  • A: 16mm

    • ItemNoDescriptionUOMPDF
    ANF168CLEVIS YOKE 8mm Length 42mmEACH

    Related Items

    ItemNoDescriptionUOMPDF
    ANC08ANC08CLEVIS LOCKABLE PIN 8mm Length 32mmEACH
    ANP08ANP08CLEVIS PIN 8mmEACH
