<< Back | Product Detail

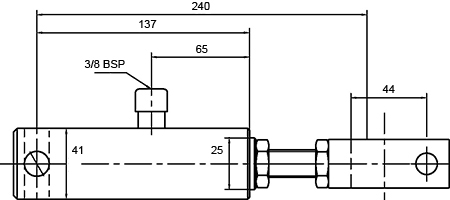

BC2575 Drawing

BRAKE RAM - EXTERNAL SPRING RETURN

Pin hole / pin hole clevis

  • Rod size: 25mm
  • Stroke: 75mm
  • Max working pressure: 210 bar
  • Port size: 3/8" BSP Male

    • ItemNoDescriptionUOMPDF
    BC2575BRAKE RAM 75mm Stroke 25mm RodEACH

    Related Items

    ItemNoDescriptionUOMPDF
    BC2575C2BBC2575C2BBRAKE RAM KIT 75mm Stroke 25mm Rod DOUBLE SPRINGEACH
    BC2575C2BSPRINGBC2575C2BSPRINGBRAKE RAM SPRING TO SUIT BC2575C2B & BC3075C2AEACH
