SMT250 - 250CC ORBITAL MOTOR

Orbital motors offer compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. The drain makes it possible to use several motors in series without any problems. The drain also makes these motors more suitable for use in a closed hydraulic system.

  • Displacement: 250cm³/rev


    • ItemNoDescriptionUOMPDF
    SMT250ORBITAL MOTOR SMT (4 Bolt) 250CCEACH

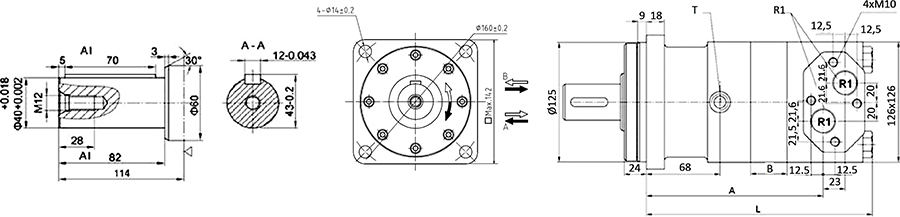

    SMT Orbital Motor

  • Motor has a 40mm diameter cylindrical shaft

    • R1
    Port    		 Max
    Flow
    (lpm)    		 Max
    Press
    Cont    		 Max
    Press
    Inter    		 Max
    Peak
    Press    		 cm³ /
    Rev    		 RPM
    Cont    		 RPM
    Inter    		 Max
    Torque
    Cont    		 Max
    Torque
    Peak    		 Max
    Power
    Cont    		 A B L
    3/4" BSP 125 200 240 280 250 495 600 73 102 33.5 160 22 211
